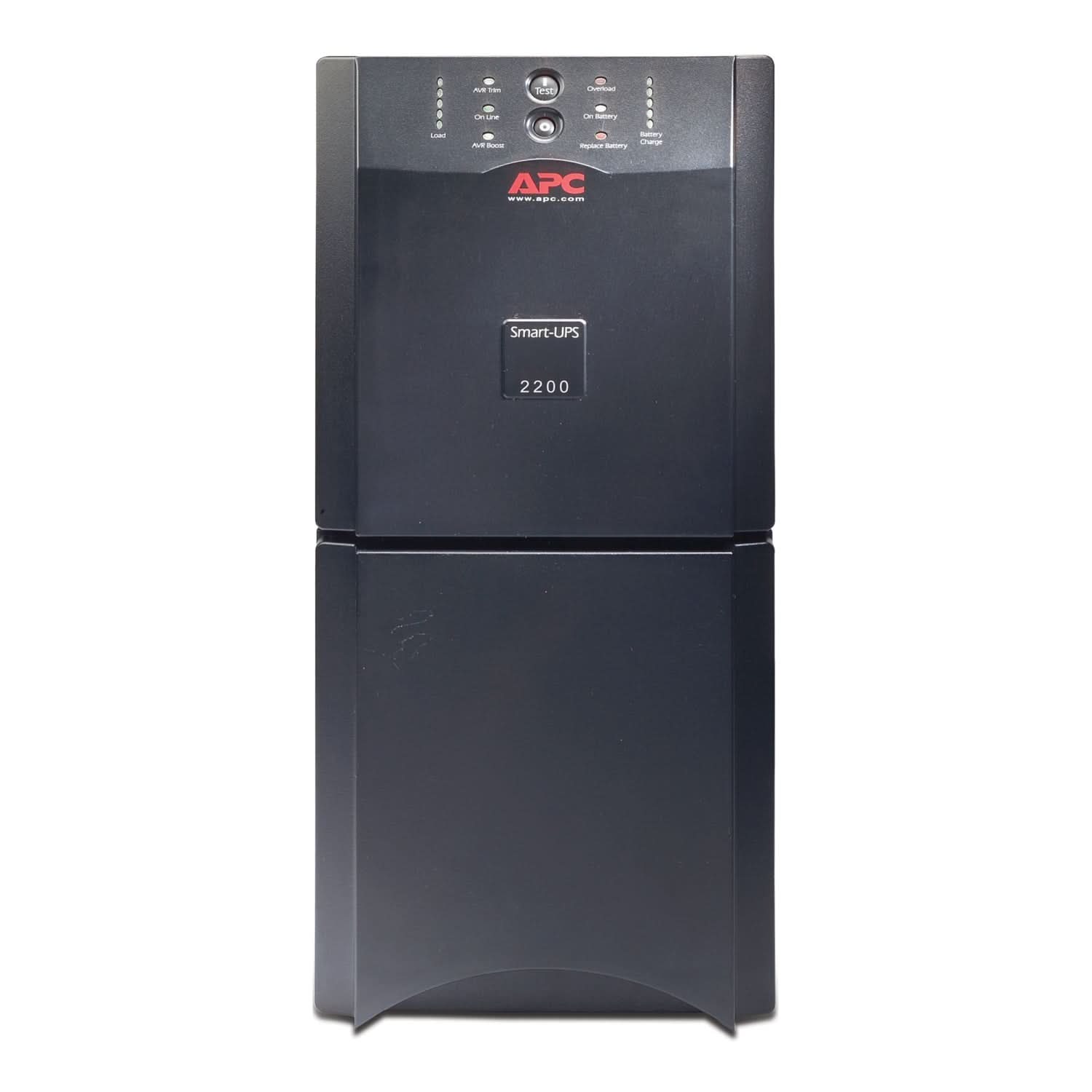

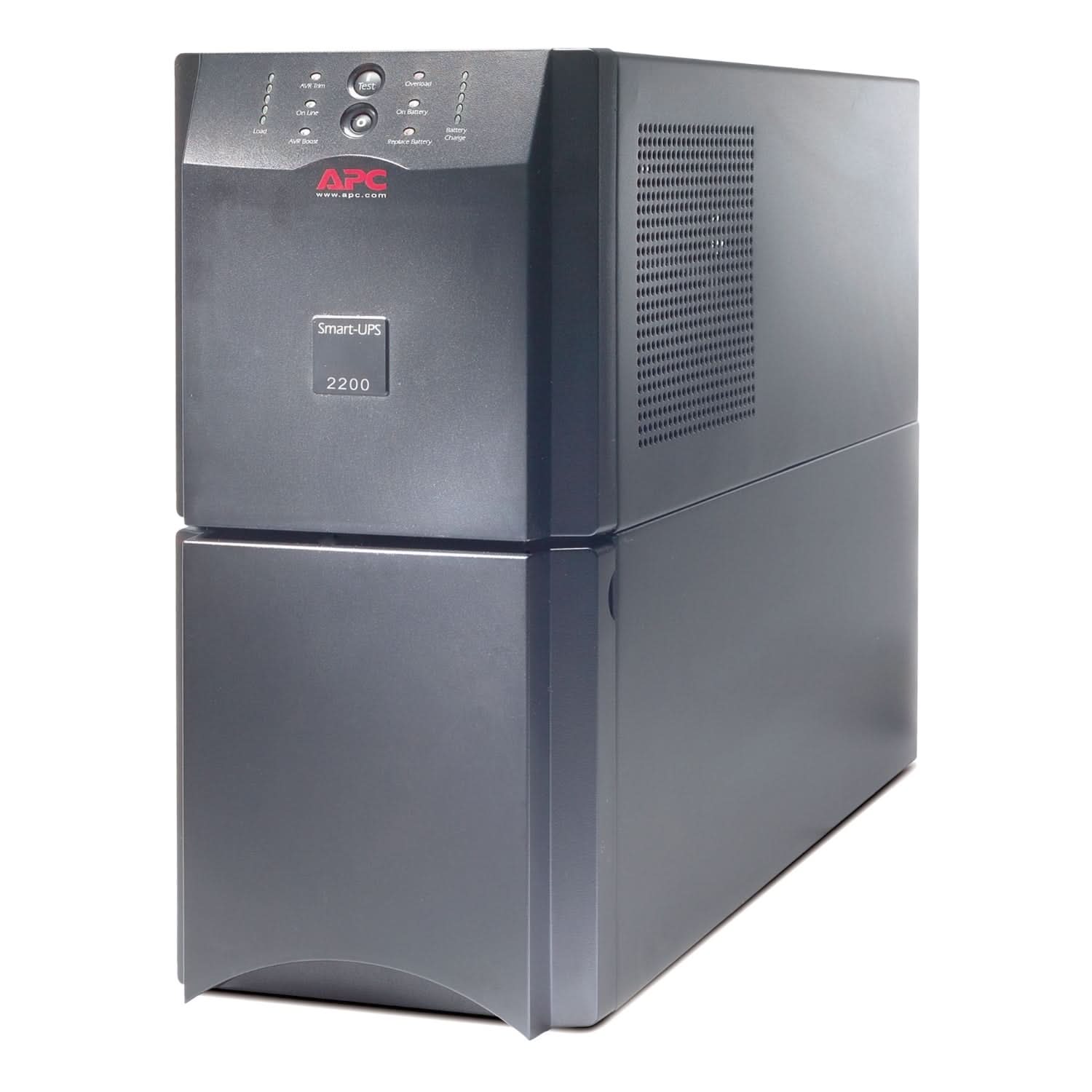

Apc Smart-Ups Sua2200I-Ind – 2200Va/ 1980W | 230V
₹53,395
About the item Robust Enterprise Power Protection: 2200VA/1980W Line-Interactive UPS delivers powerful, pure sine wave backup for mission-critical servers, data centers, networking equipment, and sensitive enterprise devices. Optimized for Indian Power: F
Description
About the item
- Robust Enterprise Power Protection: 2200VA/1980W Line-Interactive UPS delivers powerful, pure sine wave backup for mission-critical servers, data centers, networking equipment, and sensitive enterprise devices.
- Optimized for Indian Power: Features Automatic Voltage Regulation (AVR) and a wide input voltage range (151-302V adjustable) to handle fluctuating power conditions prevalent in India, ensuring stable output.
- Extended Runtime for Critical Loads: Equipped with 4 x 17Ah sealed lead-acid batteries, providing substantial backup: up to 24.1 minutes at 50% load and 6.7 minutes at full load for ample shutdown time.
- Comprehensive Connectivity & Management: Includes 6 India 6A outlets, plus USB, serial (DB-9 RS-232), and SmartSlot interfaces for network management cards and remote monitoring via PowerChute Business Edition.
- Clear Monitoring & Alerts: LED indicators, load/battery bar graphs, and audible alarms provide real-time status updates, keeping you informed about power conditions.
- Advanced Surge Protection: Offers 365 Joules of surge protection to effectively shield your valuable IT assets from damaging voltage spikes.
- User-Replaceable Battery: Designed for easy maintenance and extended UPS lifespan with a user-replaceable battery, reducing service costs.
- Certified Reliability: BIS certified for safety and quality assurance, guaranteeing dependable performance in demanding environments.
- 2-Year Warranty: Backed by a comprehensive manufacturer’s 2-year repair or replace warranty for long-term peace of mind.
Key Features:
-
Power Output: 2200VA / 1980W €“ supports high-load enterprise equipment.
-
Input Voltage Range: 165€“285V (extended: 151€“302V) €“ ideal for Indian power conditions.
-
Output Voltage: 230V nominal with pure sine wave output.
-
Battery Backup: 4 x 17Ah sealed lead-acid batteries; 6.7 minutes at full load, 24.1 minutes at 50% load.
-
Connectivity: USB, DB-9 RS-232 serial port, and Smart-Slot for optional network management.
-
User Interface: LED status indicators, load and battery bar graphs, and audible alarms.
-
Surge Protection: 365 Joules €“ protects against voltage spikes and surges.
-
Software Integration: Compatible with PowerChute Business Edition for safe shutdown and energy management.
-
Design: Tower form factor (432 x 196 x 544 mm), 50.8 kg weight.
-
Certifications & Warranty: BIS certified; 2-year repair or replace warranty.
Specification
| Category | Specification |
|---|---|
| Availability | Usually in Stock |
| Main Power Specs | |
| Product Type | Uninterruptible Power Supply (UPS) |
| Rated Power | 1980 W / 2200 VA |
| Load Range | 198€“1980 W |
| Runtime (Full Load) | 6 minutes 45 seconds |
| Max Capacity Used | 100% |
| Output Voltage | 230 V (Configurable: 220 / 230 / 240 V) |
| UPS Type | Line Interactive |
| Wave Type | Sine wave |
| Transfer Time | 2 ms typical |
| Output Frequency | 47€“53 Hz (sync to mains, 50 Hz nominal) |
| Efficiency | 90% (full load) |
| Harmonic Distortion | < 5% |
| Battery & Runtime | |
| Battery Type | Lead-acid |
| Extended Runtime | No |
| Recharge Time | 3 hours |
| Battery Life | 2€“4 years |
| Battery Charger Power | 271 W rated |
| Battery Slots (Filled/Free) | 0 / 0 |
| Input | |
| Input Voltage | 230 V |
| Input Voltage Range | 151€“302 V (adjustable) |
| Input Connection Type | India 3-pin 16A |
| Plug Standard | India 3-pin 16A |
| Network Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Output Connections | |
| 6x India 3-pin 6A | Yes |
| 1x IEC 60320 C19 | Yes |
| Physical | |
| Height | 43.2 cm |
| Width | 19.6 cm |
| Depth | 54.4 cm |
| Weight | 50.8 kg |
| Mounting | Not rack-mountable |
| Mounting Preference | No preference |
| USB Compatible | No |
| Environmental | |
| Operating Temp | 0€“40 °C |
| Storage Temp | -15€“45 °C |
| Humidity (Operating/Storage) | 0€“95% |
| Operating Altitude | 0€“10,000 ft |
| Storage Altitude | 0€“15,240 m |
| Acoustic Level | 45 dBA |
| Heat Dissipation | 275 BTU/h |
| Communications & Alerts | |
| Control Panel | LED status (on-line, on-battery, replace battery, overload) |
| Alarms | On battery, low battery, overload (configurable delays) |
| Communication Port | SmartSlot |
| Surge Protection & Filtering | |
| Surge Energy Rating | 365 J |
| Noise Filtering | Multi-pole filtering, IEEE compliant, UL 1449 |
| Packing Details | |
| Package Type | PCE |
| Package Dimensions (H × W × L) | 70 cm × 76 cm × 38 cm |
| Package Weight | 64.86 kg |
| Warranty | 2 Years (repair or replace) |
