Model GP-UD750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 750W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB)f
|
Model
|
GP-UD750GM
|
|
Type
|
Intel Form Factor ATX 12V v2.31
|
|
PFC
|
Active PFC (>0.9 typical)
|
|
Input Voltage
|
100-240 Vac (full range)
|
|
Input Current
|
12-6A
|
|
Input Frequency
|
60-50 Hz
|
|
Output Capacity
|
750W
|
|
Dimension
|
150 x 140 x 86 mm
|
|

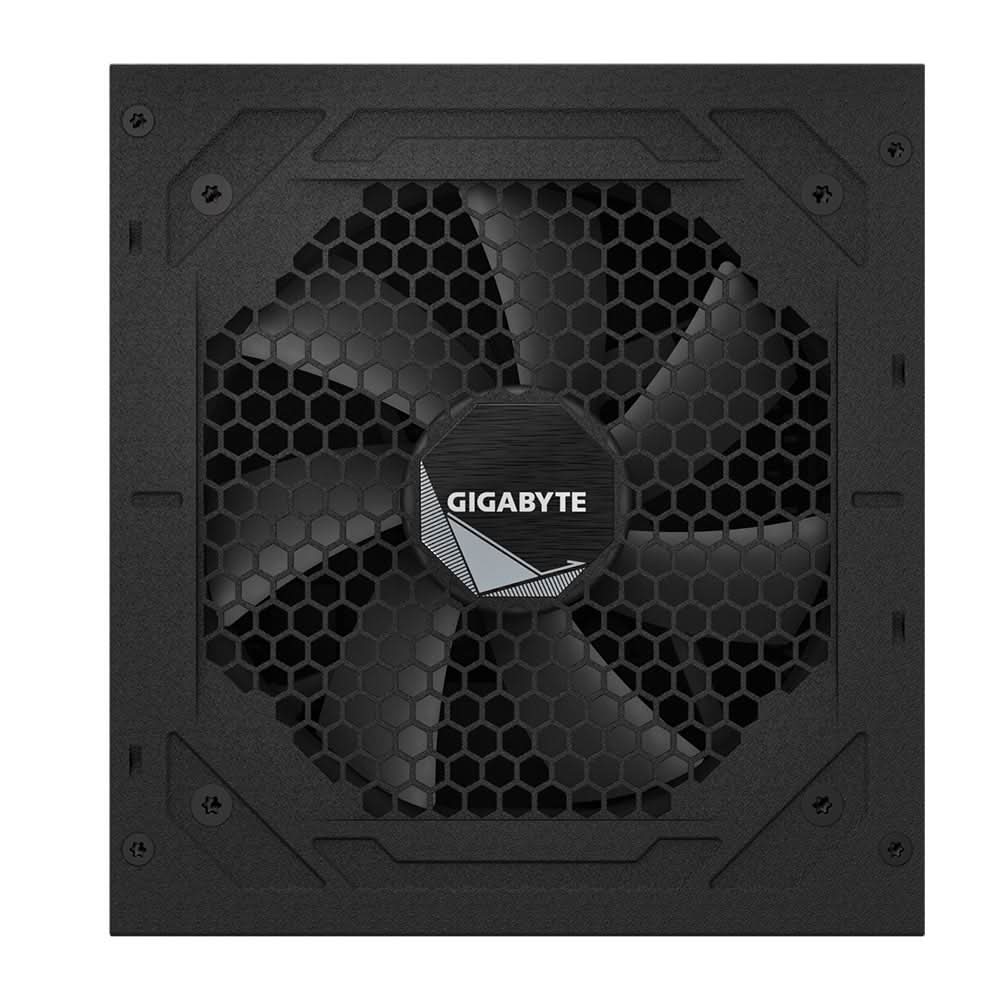

Fan Type
|
120mm Hydraulic Bearing(HYB)fan
|
|
80 PLUS
|
Gold
|
|
Efficiency
|
90% at typical load
|
|
MTBF
|
>100,000 hours
|
|
Protection
|
OVP/OPP/SCP/UVP/OCP/OTP
|
|
Power Good Signal
|
100-150ms
|
|
Hold Up Time
|
>16ms
|
|
Cable Type
|
Flat, All black
|
|

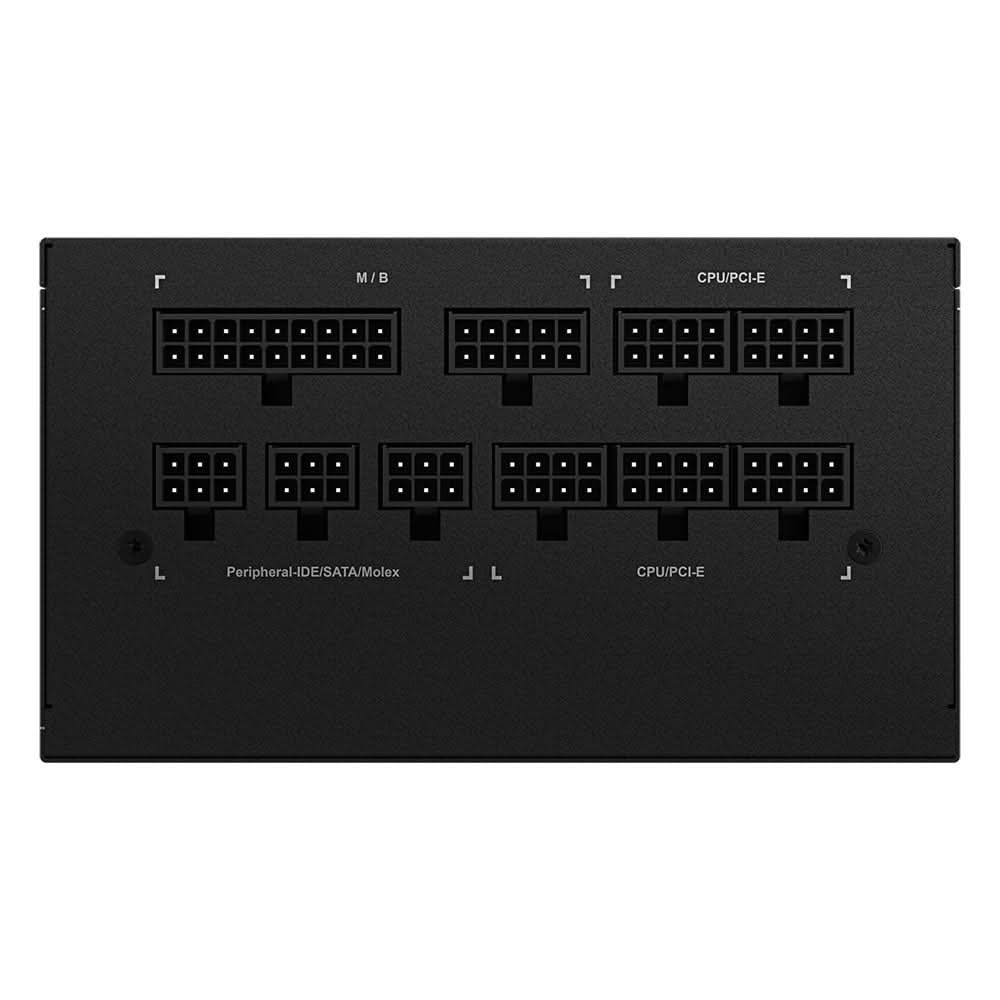

Connectors
|
ATX/MB 20+4 Pin x 1 : 610mm*1
|
| CPU/EPS 4+4 Pin x 2 : 600mm*2 | |
| PCI-e 6+2 Pin x 4 : 600mm+150mm*2 | |
| SATA x 8 : | |
| 600mm+150mm+150mm+150mm*2 | |
| 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
|
